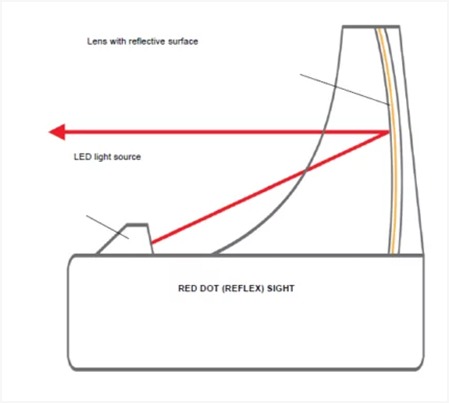

Reflex sight or reflector sight is an optical device primarily used on firearms, cameras, and other aiming devices to provide quick and accurate aiming through a non-magnifying lens. The lens in use is a partially reflective spherical lens that acts as a concave mirror. It is kept in such a way that it reflects the light coming from the light source placed at the focus.
These optical devices work on the simple optical principle that anything at the focus of a lens or curved mirror (such as an illuminated reticle) will appear to be sitting in front of the viewer at infinity.
![](images/Blog/Reflex-sight-01.jpeg)

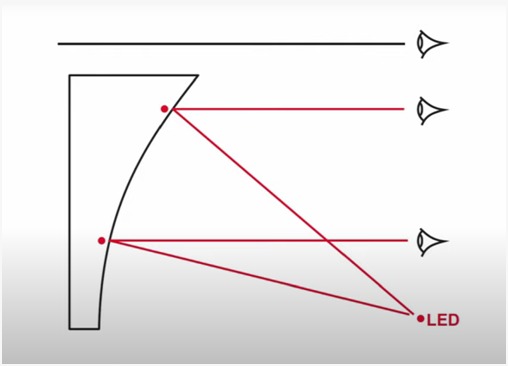

A red dot sight is a standard classification for a type of non-magnifying reflector (or reflex) sight for suitable firearms, and other devices that require aiming, that gives the user a point of aim in the form of an illuminated red dot. A standard design uses a red light-emitting diode (LED) at the focus of collimating optics which generates a dot-style illuminated reticle that stays in alignment with the weapon to which the sight is attached.
![](images/Blog/Reflex-sight-02.jpeg)
RRP S4E Innovations engineers two reflex sight PR 100 and PRM 25.
PRM 25 is an open-type red dot reflex sight that employs a light source at the off-axis focal point with a red dot size of 3 MOA (minute of angle). The spherical lens in use is coated with a special film that reflects only a specific wavelength, in our case, it only reflects a specific wavelength of 650 nm.
![](images/Blog/Reflex-sight-03.jpeg)

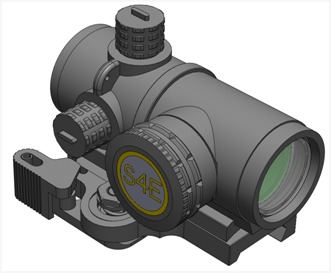

PR 100 is a tube-type red dot reflex sight, similar to PRM 25 this sight also has a red dot size of 3MOA (minute of angle) and has a similar coating that only reflects red light. A mesh is also provided which obstructs unwanted light that might cause unwanted reflection inside the tube.
![](images/Blog/Reflex-sight-04.jpeg)
MOA: A minute of angle (MOA), often abbreviated as "minute," is a unit of angular measurement mainly used in shooting. One MOA is equal to 1/60th of a degree or approximately 1.0472 arcminutes. 1 MOA is equal to 1.047 inches (~1 inch) at a distance of 100 yards.
![](images/Blog/Reflex-sight-05.jpeg)
