Thermal Sight

PR82 12 μm

Overview

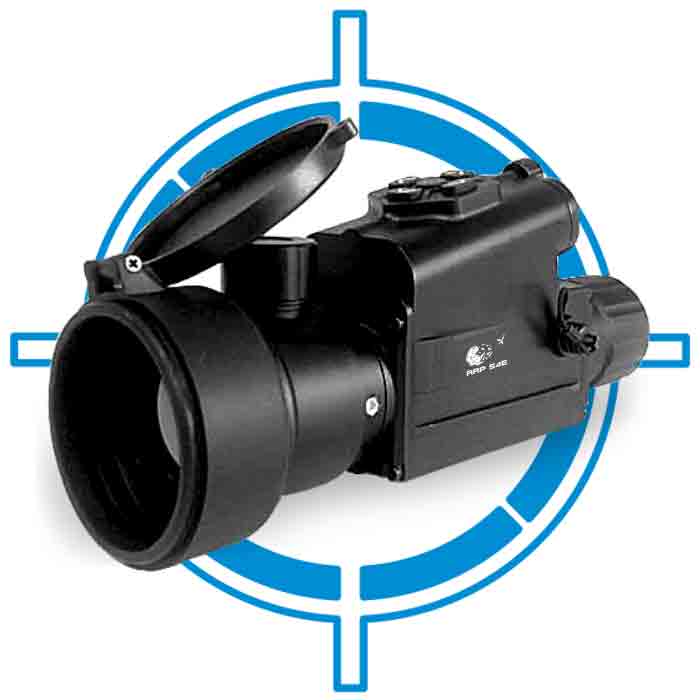

The PR82 is a Thermal Sight.

PR82 is a Thermal Night Vision Scope that features 12-micron 640 x 480 thermal sensors, providing exceptional image clarity and extended detection ranges.

Features

Magnification

It includes a 3X optical magnification and 4X digital zoom capability.

OLED Resolution

It has a 800x600 OLED resolution

Sensor Detector

It has equipped with an uncooled A-Si 12 micron sensor with a 640x480 resolution.

MIL-STD

The sight meets the requirements of MIL-STD JSS-55555.

Lens Type

35mm, 50mm, and 75mm lens types are available

Battery Endurance

The battery runs more than a 6-hour.

Technical Specifications

Specifications PR82-12μm
Sensor A-Si, 12µm, 640x480
Detector sensor type Uncooled
OLED Resolution 800 x 600
Frame Rate 50 Hz
Video Output Yes (Optional)
Display Color OLED matrix, SVGA< 800x600
Polarity White hot/Black hot/multiple color model
Thermal Sensitivity < 50 mk
Non-Uniformity Correction Automatic (Shutter less / Shuttered)
Spectral Response 8-12µm
Specifications PR82-12μm
Field of View 6° x 4° minimum
Eye Relief 52 mm
Optical Magnification 3X
E-Zoom 4X
Diopter Adjustment -4D to +2D
Battery type 18650 (2 no's)
Battery life ≥ 6 hours
Standards MIL-STD 810-G/JSS 5855-11-2009/MIL-STD 461-F
Weight 875 grams
Detection, Recognition, Identification
(For 75mm lens)
Human: 2000m, 900m, 500m
Vehicle: 3000m, 1500m, 700m
DRI Based on NATO Target Human: 1.8 x 0.5 m
Vehicle: 2.3 x 2.3 m
