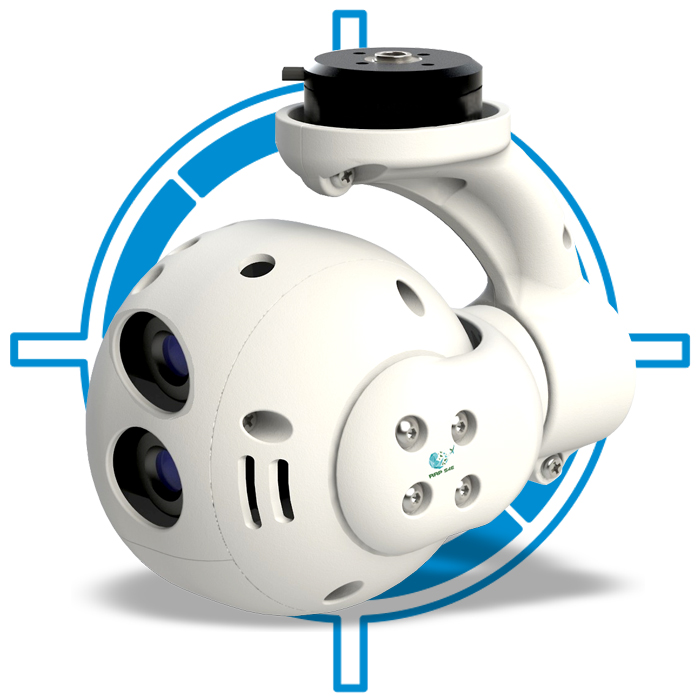

DRONE CAMERA
Unveil new dimensions of tactical superiority with our cutting- edge lightweight drone camera. Purpose-built for military excellence, it redefines portability and precision in aerial reconnaissance. Dominate with advanced surveillance, target tracking, and situational awareness.
Lightest drone camera which uses most compact thermal core. Weighs only 6 gms without housing.
Captures detailed photos and videos in night time with 17 micron pixel pitch.
Ultra low power consumption of 750mW.
Compatible with 19mm/ 25mm/35mm
Extremely compact 25 x 25 x10 m³ thermal core.
| GENERAL PARAMETER | |
|---|---|
| Working Voltage | 12V-25V |
| Power Consumption | 750 mW |
| Weight (Without Housing) | 6 gm |
| Video output | Customizable |
| Sbus | Support (controlled by Wincc) |
| Display and control terminal | Windows PC |
| Video output resolution | Day camera: 720P, 1080P Thermal camera: 640*480 |
| ENVIRONMENT SPECIFICATIONS | |
| Operating temperature | -30° to +55 |
| GIMBAL PARAMETER | |
| Accuracy | 0.008° |
| Mounting type | Detachable |
| Range of control angle | Pitch: +70° to -90°; Yaw: +160° |
| Structure design angle | Pitch: +75° to -100°; Yaw: +175°; Roll: +90° to -50 |
| Max. Control speed | Pitch: +120°/s; Yaw: +180°/s |
| Moving object tracking | Support |
| CAMERA PARAMETER (Day Camera) | |
| Sensor | CMOS: 1/2.8", Total pixels: 2.3 MP |
| Lens | 30x optical zoom lens
F: 4.7-141mm Minimum object distance: 1m - 1.5m Field angle (horizontal): 60° -2.3° |
| Image storage format | JPEG |
| Video storage format | MP4 |
| CAMERA PARAMETER (Thermal Camera) | |
|---|---|
| Detector | 640 x 480 |
| Pixel size | 17 micron |
| Digital Zoom | 4X |
| Lens | 25 mm |
| OTHER PARAMETER | |
| Working mode | REC PIC |
| Fog-penetrating method | Electronic fog penetration |
| Exposure mode | Auto |
| HD Video | 1920*1080/25fps (default) Range: 1-50fps(adjustable by web page "Camera") |
| 2D Denoise | Support (auto) |
| 3D Denoise | Support (auto) |
| Shutter speed | 1/3 - 1/30000s |
| Exposure Mode | Automatic |
| OSD | Support |
| Point to zoom | Support |
| Zoom range | 1-30x optical zoom |
| One - key to no - zoom | Support |
| Detection | Day: 4km Night: 2km |
| Recognization | Day: 2km Night: 1km |
| Identification | Day: 1km Night: 0.5km |
